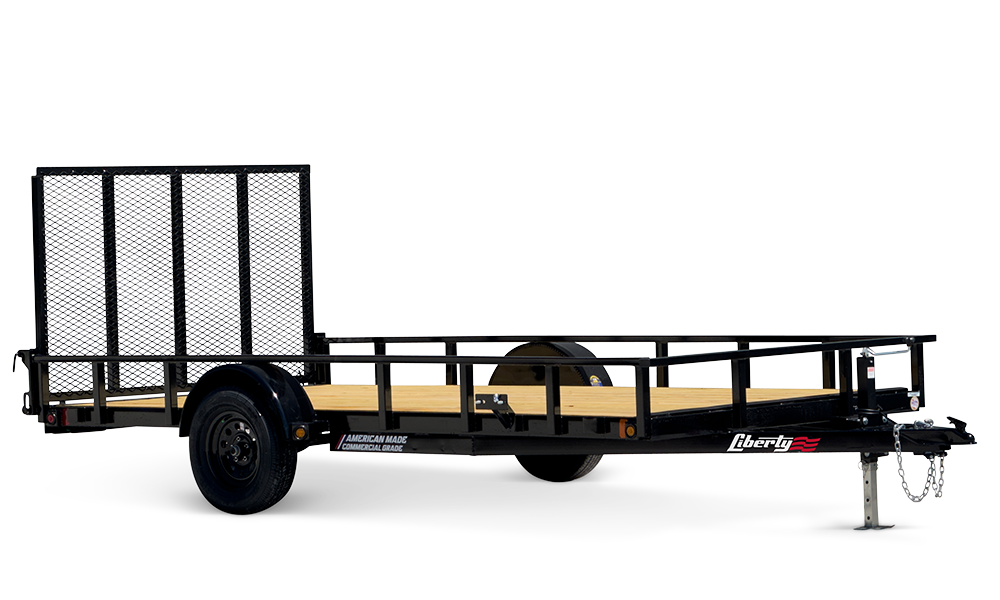

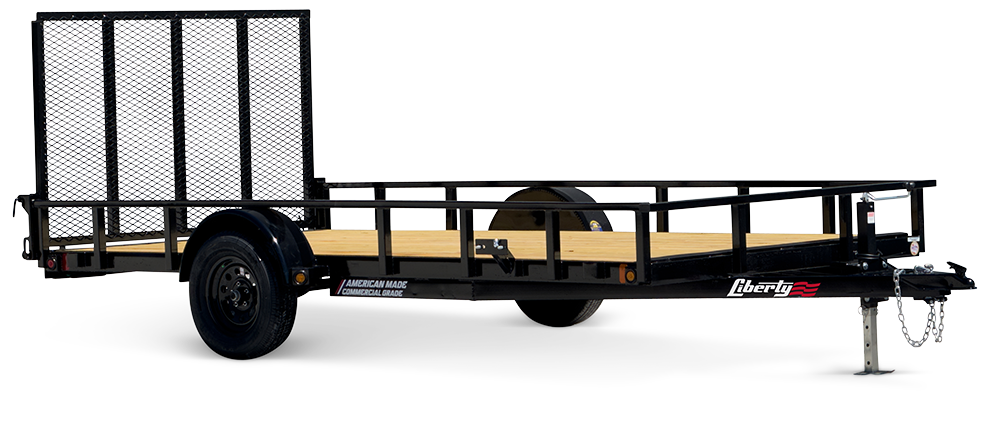

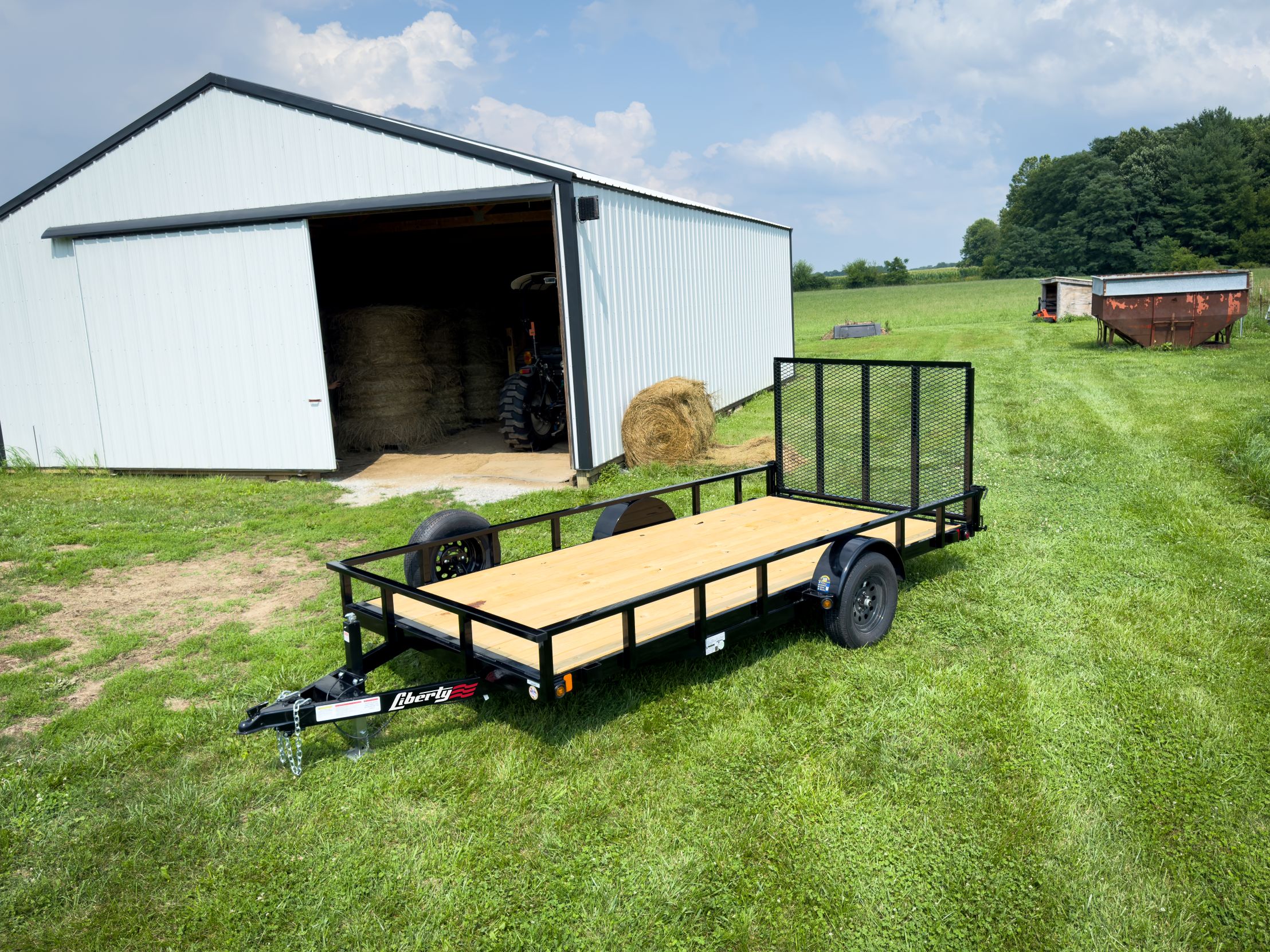

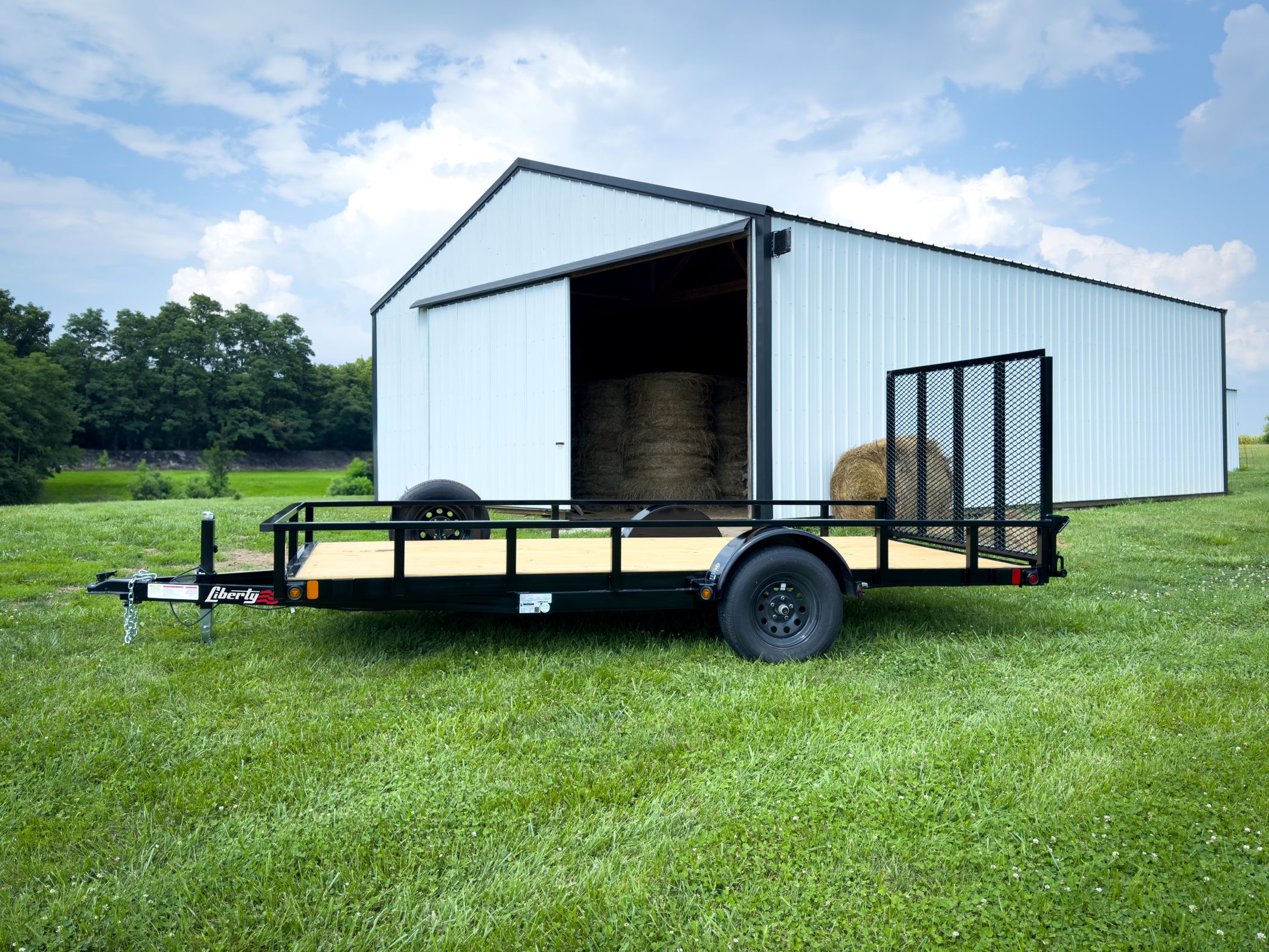

MODELS: | LU3K60C4 - LU3K72C4 - LU3K78C4 - LU3K83C4
Features
- 2,990 lbs. GVWR
- 60", 72", 78", 83” Bed Width(s)
- 60" Model Lengths - 8', 10' | 72", 78", 83" Model Lengths - 10', 12', 14'
- 3,500 LB Straight, Dexter E-Z Lube
- 205/R15 LRC Radial Tires, Mod Wheel
- Spare Tire Mount
- Four Leaf Eye-To-Eye Springs
- 2,000 LB Jack
- 5K, 2" A-Frame Coupler
- 9" Rolled Fenders
- 4” Channel Chassis
- 4” Structural Channel Wrapped Tongue
- 2" X 2" Angle Crossmembers, 24” On Center

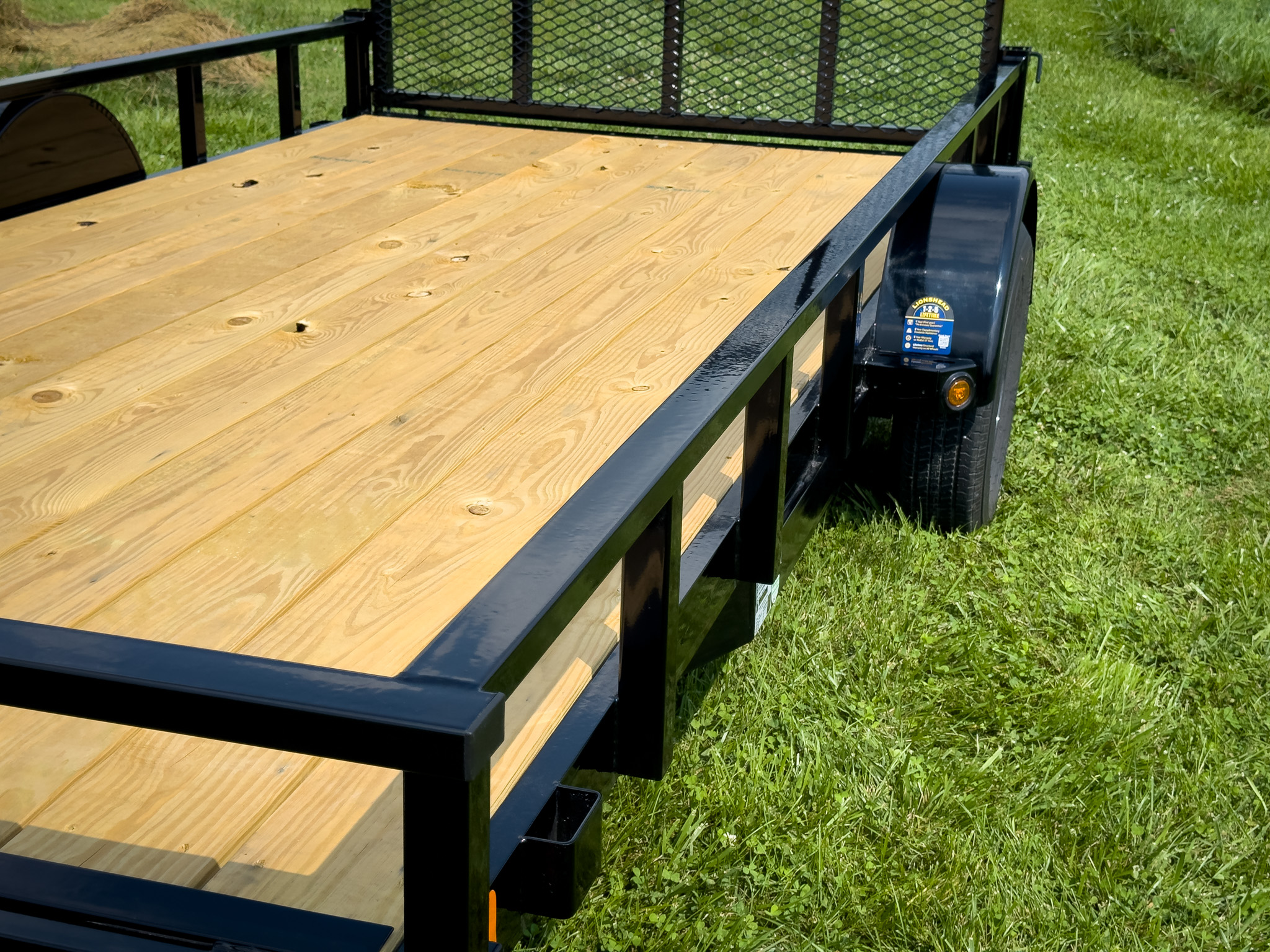

- Treated Pine Decking

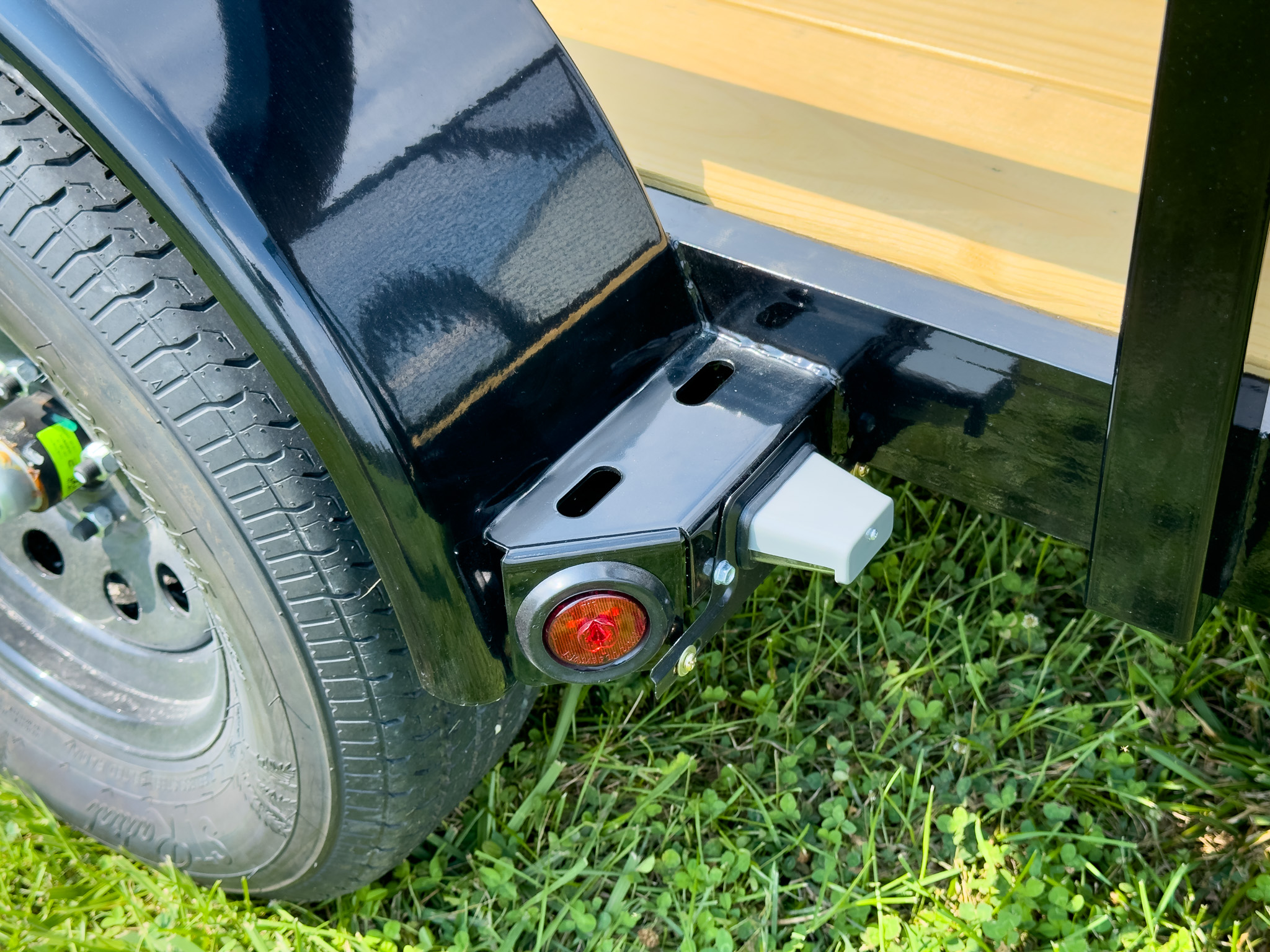

- Industrial Grade Sealed Wiring Harness, LED Lights
- Sand Blasted, Degreased, Acid Washed, Sealer Rinsed
- Sherwin Williams Powder Coat for a High Gloss & Protective Finish
Configure Your Trailer
Options
| Tire Options |
|---|
| 205/R15 LRC RADIAL, Silver Mod Wheels |
| 205/R15 LRC RADIAL, Black Mod Wheels |
| Jack Options |
| 2,000 LB Set Back Jack |
| 7,000 LB Dropleg Set Back Jack (72", 78", 83" Models) |
| Tail Options |

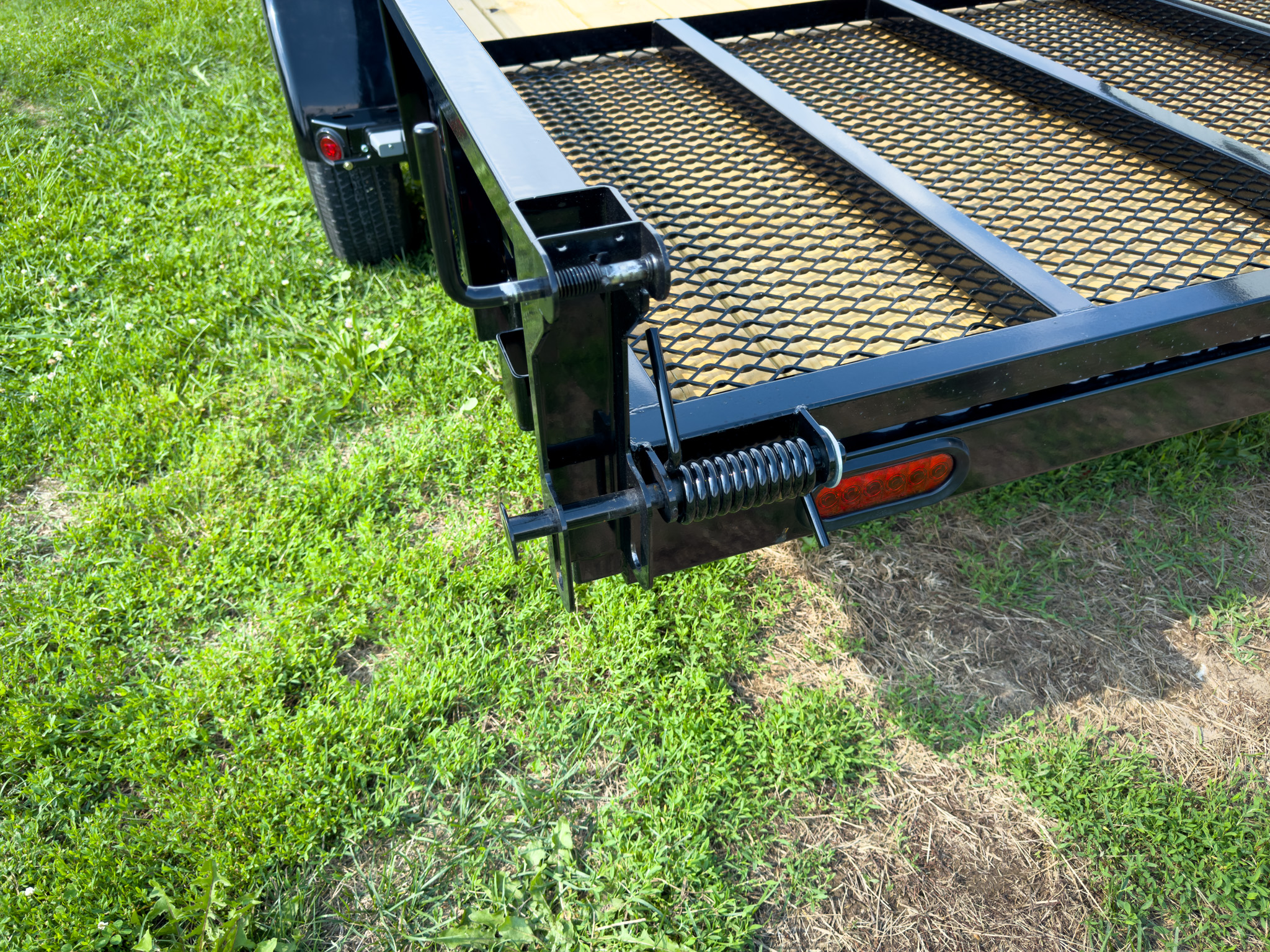

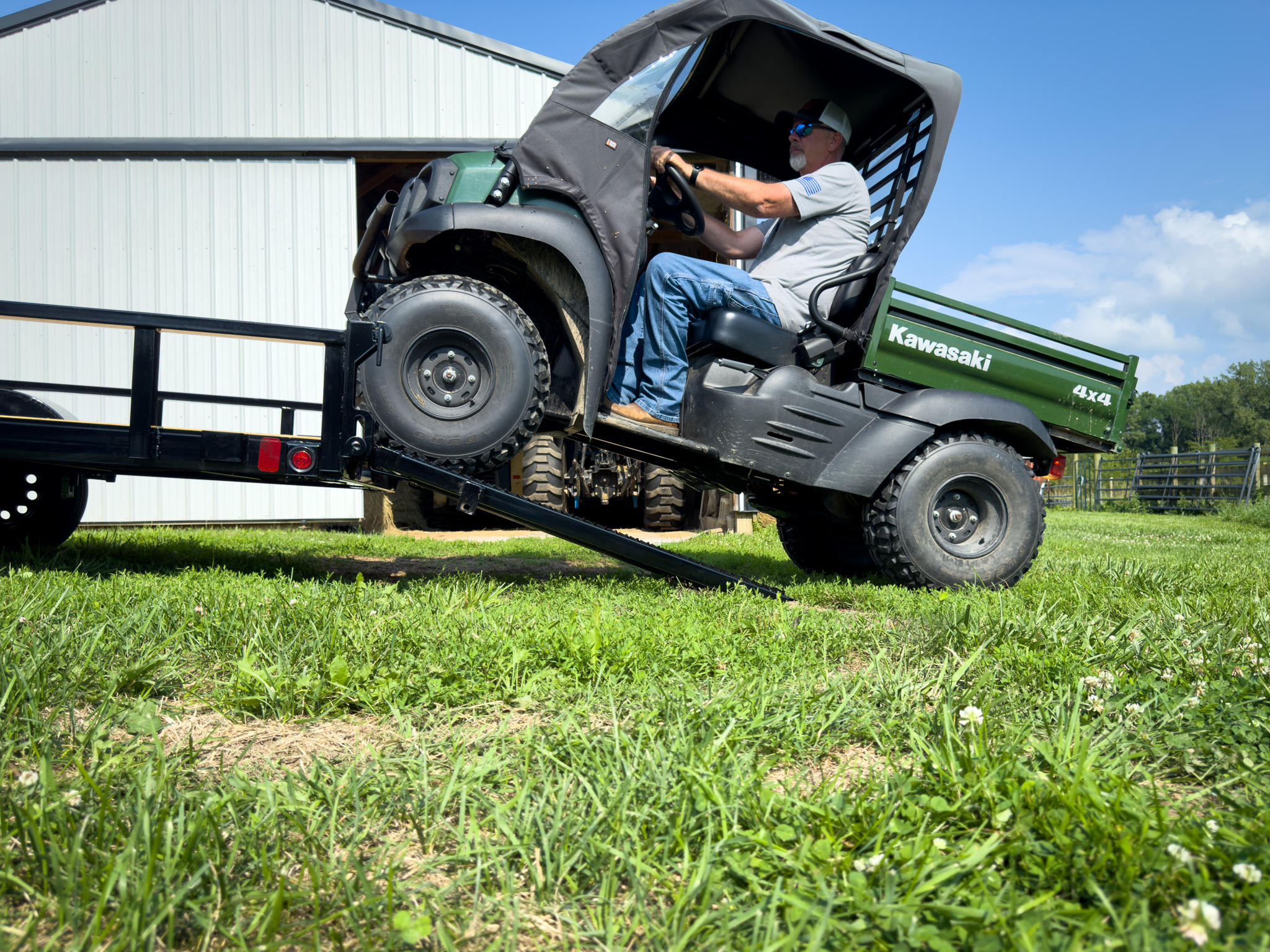

| 30" Tube Gate, 6GA Expanded (One Spring Standard) |

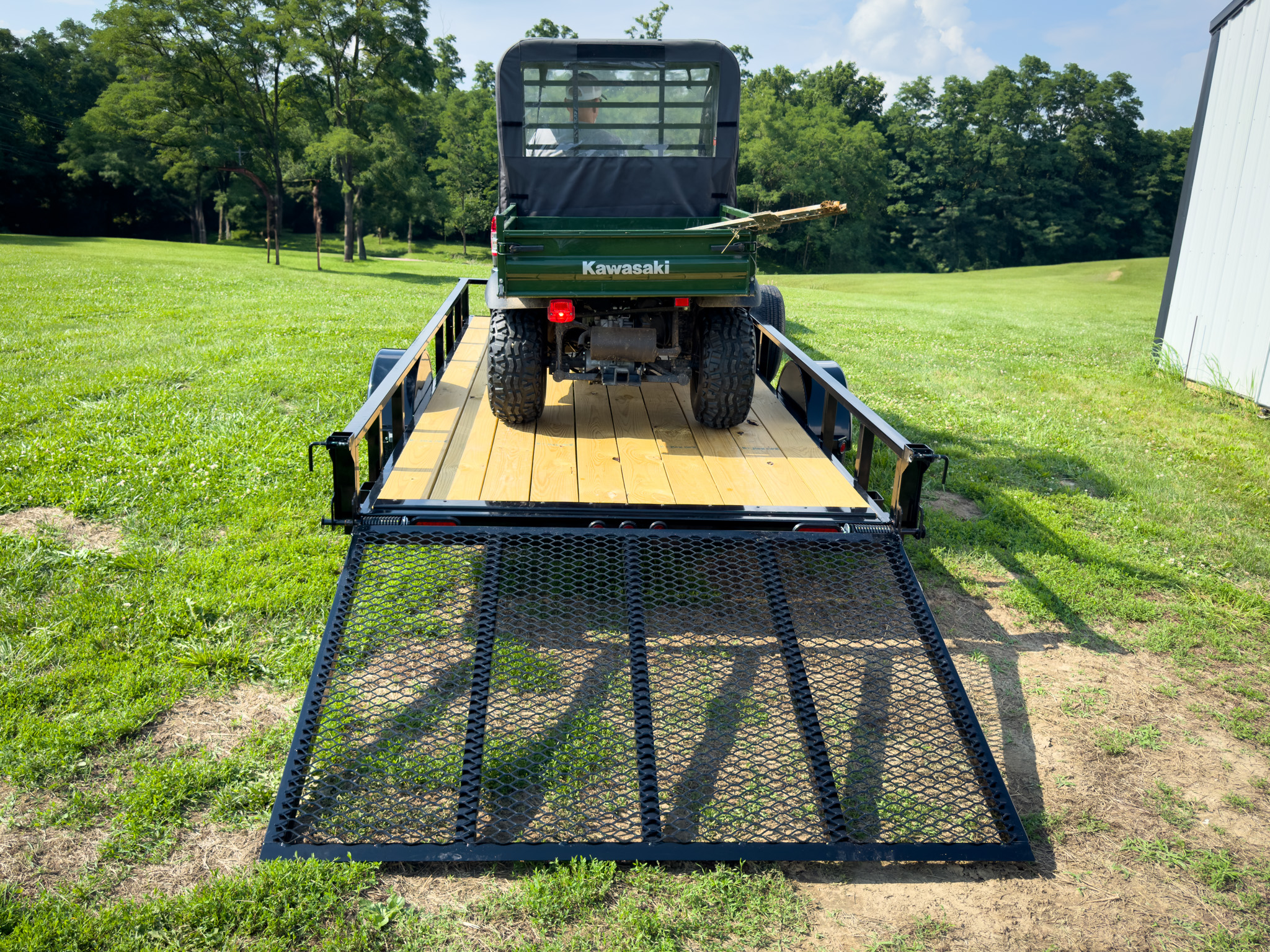

| 48" Tube Gate, 6GA Expanded (Two Springs Standard) |
| 2' Wood Dovetail (72", 78", 83" Models) |

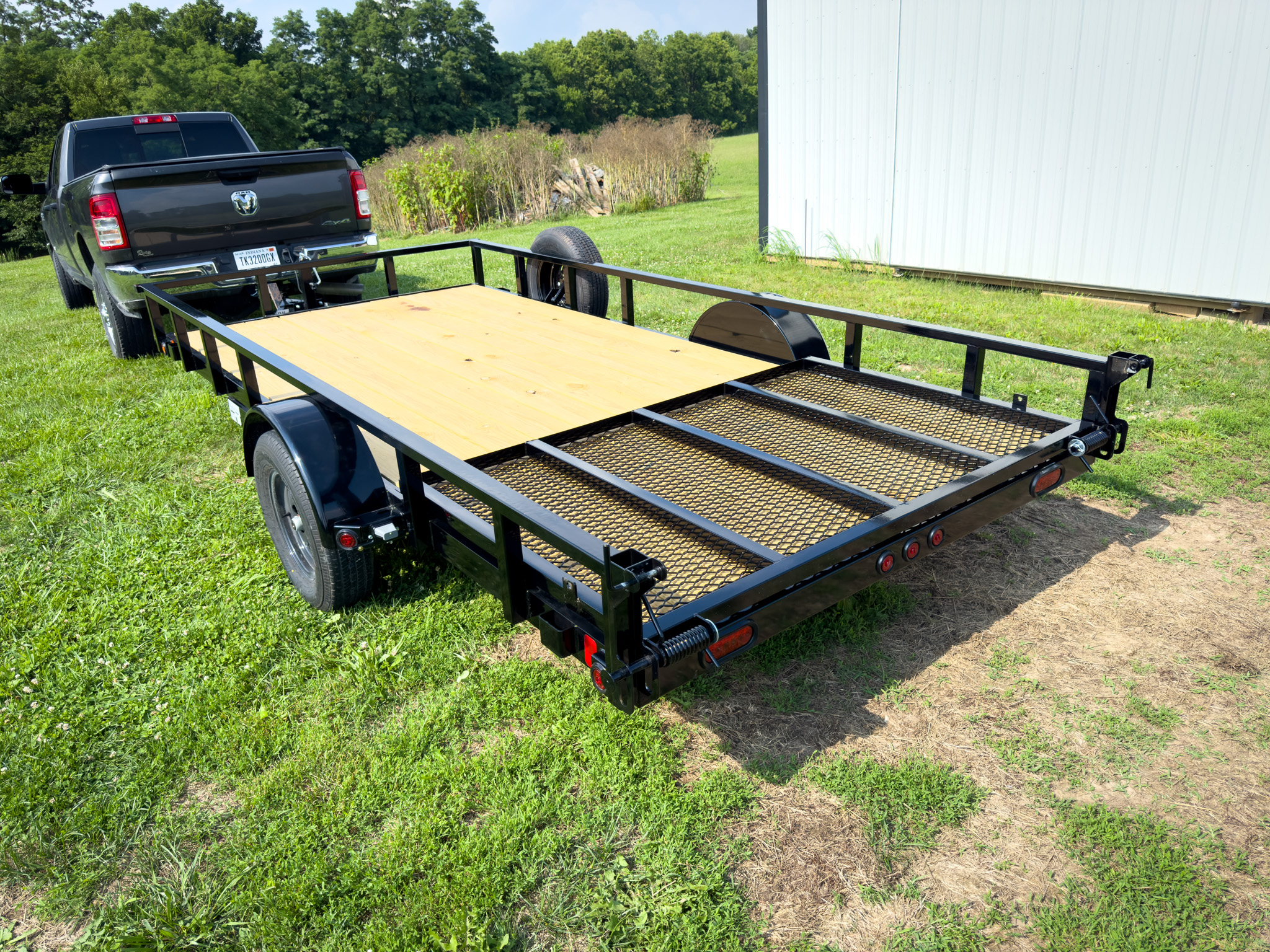

| Side Mount ATV Ramps (72", 78", 83" Models) [14' Length Only] |
| 60" X 48" Tube Side Gate, 6GA Expanded [12' & 14' Lengths] |
| Top Rail Options |
|---|
| 2" X 2" Angle Top Rail & Uprights |
| 2 1/2" X 1 1/2" Tube Top Rail & 2" X 2" Tube Uprights |
| Side Options |
| 20" Removable Three Board Sides |
| 23" V-Crimped Solid Metal Sides |
| Other Options |
| Radial Spare Tire and Wheel Mounted on Trailer |
