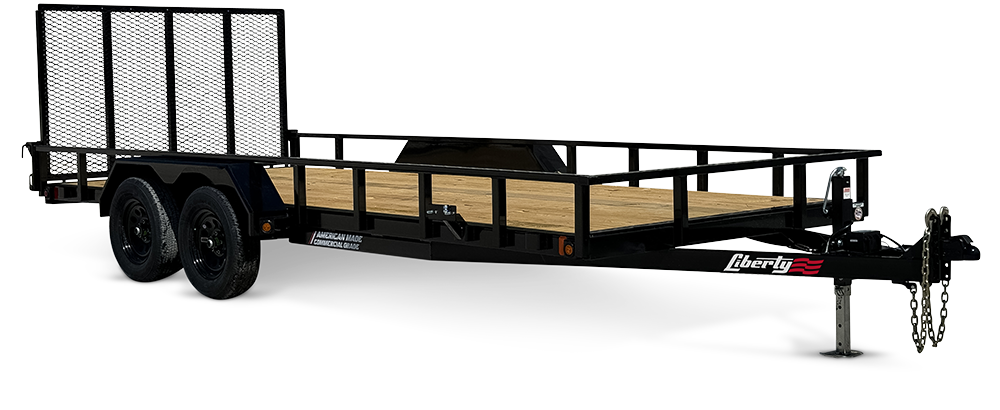

MODELS: | LU7K83C4
Features
- 7,000 lbs. GVWR
- 83” Bed Width
- 14', 16', 18', 20' Lengths
- (2) 3,500 LB Straight, Dexter E-Z Lube
- 205/R15 LRC Radial Tires, Mod Wheel
- Spare Tire Mount
- Brakes on Both Axles
- Four Leaf Eye-To-Eye Springs
- 7,000 LB Jack
- 14K, 2 5/16" Adjustable Coupler
- 9.5" X 72" Smooth Jeep Style Fenders
- 4” Channel Chassis
- 4” Structural Channel Wrapped Tongue
- 2 1/2" X 2 1/2" Angle Crossmembers, 24” On Center
- Treated Pine Decking
- Industrial Grade Sealed Wiring Harness, LED Lights
- Sand Blasted, Degreased, Acid Washed, Sealer Rinsed
- Sherwin Williams Powder Coat for a High Gloss & Protective Finish
Configure Your Trailer
Options
| Tire Options |
|---|
| 205/R15 LRC RADIAL, Silver Mod Wheels |
| 205/R15 LRC RADIAL, Black Mod Wheels |
| Coupler Options |
| 14K, 2 5/16" Adjustable Coupler |
| 20k Pintle Eye Adjustable Coupler |
| Tail Options |
| 30" Tube Gate, 6GA Expanded (One Spring Standard) |
| 48" Tube Gate, 6GA Expanded (Two Springs Standard) |
| 2' Wood Dovetail |
| Side Mount ATV Ramps [14' Length Only] |
| 60" X 48" Tube Side Gate, 6GA Expanded [12' & 14' Lengths] |
| 82" Full Width Split Ramps with Spring Assist, 4# Grating |
| Top Rail Options |
|---|
| 2" X 2" Angle Top Rail & Uprights |
| 2 1/2" X 1 1/2" Tube Top Rail & 2" X 2" Tube Uprights |
| Side Options |
| 23" V-Crimped Solid Metal Sides |
| Other Options |
| (4) Tie Down D-Rings |
| Rectangular Storage Box |
| Radial Spare Tire and Wheel Mounted on Trailer |
