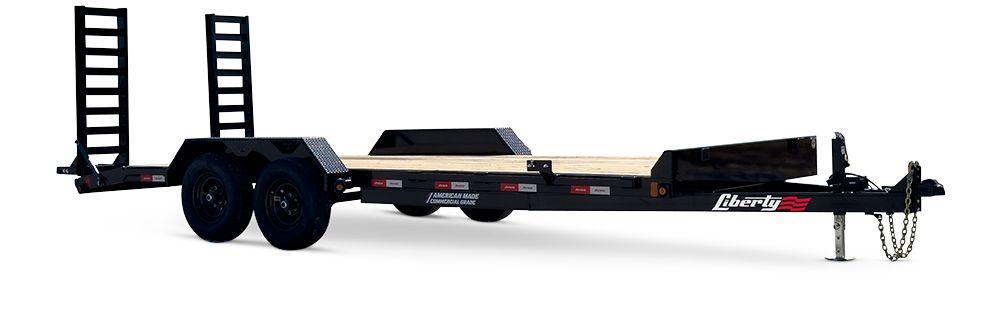

MODELS: | LE10K83C5 | LE10K102C5
Standard Features
- 9,990 lbs. GVWR
- 83”, 102" Bed Width(s)
- 16', 18', 20', 22' Lengths [22' Model Only Available in 102" Width]
- (2) 5,200 LB Straight, Dexter E-Z Lube
- 225/R15 LRD Radial Tires, Mod Wheel
- Spare Tire Mount
- Brakes on Both Axles
- Five Leaf Eye-To-Eye Springs
- 7,000 LB Jack
- 14K, 2 5/16" Adjustable Coupler
- 9.5" X 72" 14GA Diamond Plate Fenders [83" Models]
- 3/16" Diamond Plate Drive Over Fenders [102" Models]
- Stake Pockets
- 5” Channel Chassis
- 5” Structural Channel Wrapped Tongue
- 3" Structural Channel Crossmembers, 24” On Center
- Treated Pine Decking
- Industrial Grade Sealed Wiring Harness, LED Lights
- Sand Blasted, Degreased, Acid Washed, Sealer Rinsed
- Sherwin Williams Powder Coat for a High Gloss & Protective Finish
Configure Your Trailer
Options
| Tire Options |
|---|
| 225/R15 LRD RADIAL, Silver Mod Wheels |
| 225/R15 LRD RADIAL, Black Mod Wheels |
| Coupler Options |
| 14K, 2 5/16" Adjustable Coupler |
| 20K, Pintle Eye Adjustable Coupler |
| Surge Brake 2 5/16" 14K Coupler |
| Jack Options |
| 7,000 LB Top Wind Dropleg Set Back Jack |
| 12,000 LB Top Wind Dropleg Jack |
| Tail Options |
|---|
| 2' Angle Iron Self Clean Dovetail |
| 5', 3" Channel Stand Up Ramps |
| 5', 4" Channel Extra Wide Close Rung Ramps |
| 82" or 102" Full Width Split Ramps with Spring Assist, 4# Grating |
| Other Options |
| Diamond Plate Steel Floor |
| (4) Tie Down D-Rings |
| Rectangular Storage Box |
| Radial Spare Tire and Wheel Mounted on Trailer |
