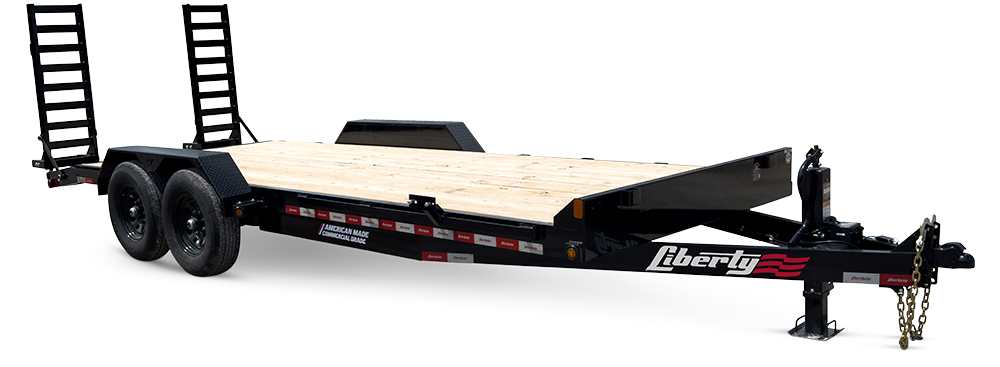

MODELS: | LE14K83C6 | LE14K83C8 | LE14K102C6 | LE14K102C8
Standard Features
- 14,0000 lbs. GVWR
- 83”, 102" Bed Width
- 16', 18', 20' Lengths [6" Channel Models] | 16', 18', 20', 22', 24' [8" Channel Models]
- (2) 7,000 LB Straight, Dexter E-Z Lube
- 235/R16 LRE Radial Tires, Mod Wheel
- Spare Tire Mount
- Brakes on Both Axles
- Five Leaf Eye-To-Eye Springs
- 7,000 LB Jack
- Spare Tire mount
- 14K, 2 5/16" Adjustable Coupler
- 9.5" X 72" 14GA Diamond Plate Fenders [83" Width Models]
- 3/16" Diamond Plate Drive Over Fenders [102" Width Models]
- Stake Pockets
- 6” or 8" Channel Chassis
- 6” or 8" Structural Channel Wrapped Tongue
- 3" Structural Channel Crossmembers, 16” On Center
- Treated Pine Decking
- Industrial Grade Sealed Wiring Harness, LED Lights
- Sand Blasted, Degreased, Acid Washed, Sealer Rinsed
- Sherwin Williams Powder Coat for a High Gloss & Protective Finish
Configure Your Trailer
Options
| Tire Options |
|---|
| 235/R16 LRC RADIAL, Silver Mod Wheels |
| 235/R16 LRC RADIAL, Black Mod Wheels |
| Coupler Options |
| 14K, 2 5/16" Adjustable Coupler |
| 20K, Pintle Eye Adjustable Coupler |
| Surge Brake 2 5/16" 14K Coupler |
| 25K, Gooseneck wiith 2 5/16" Adjustable Coupler [8" Channel Models Only] |
| Jack Options |
| 7,000 LB Top Wind Dropleg Set Back Jack |
| 12,000 LB Top Wind Dropleg Jack |
| 12,000 LB Twin Side Wind Jacks [8" Channel Models] |
| 12,000 LB Twin Two-Speed Side Wind Jacks [Gooseneck Only] |
| Tail Options |
|---|
| 2' Angle Iron Self Clean Dovetail |
| 5', 4" Channel Extra Wide Close Rung Ramps |
| 82" Full Width Split Ramps with Spring Assist, 4# Grating [83" Width Models] |
| 102" Full Width Split Ramps with Spring Assist, 4# Grating [102" Width Models] |
| 3' Angle Iron Dovetail with Wedge Ramps and Springs [83" Width Models] |
| Other Options |
| Diamond Plate Steel Floor |
| (4) Tie Down D-Rings |
| Rectangular Storage Box |
| Radial Spare Tire and Wheel Mounted on Trailer |
