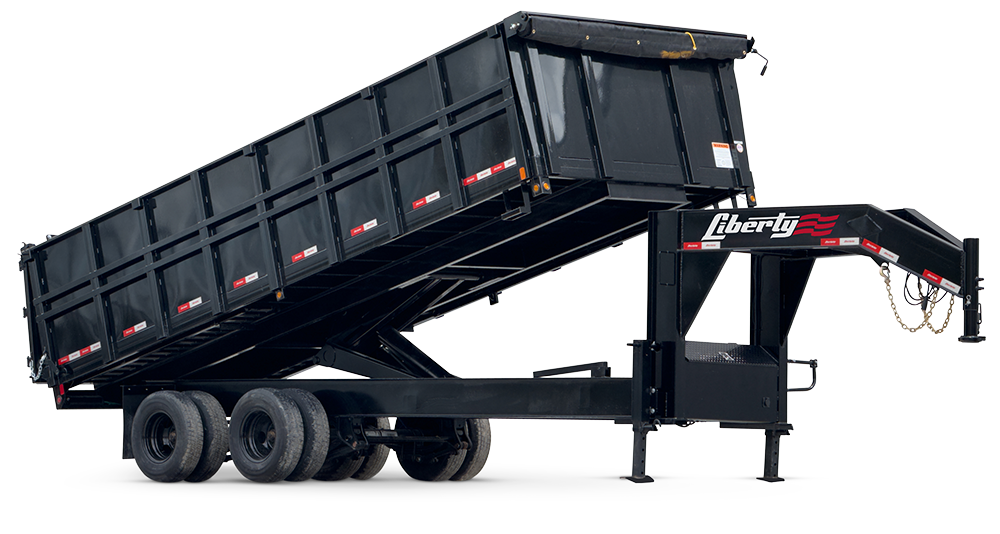

LD24K Dump Trailers

MODELS: | LD24K96B12

Standard Features

  • 23,900 lbs. GVWR
  • 96” Bed Width(s)
  • 20' Length
  • (2) 10,000 LB Straight, Dexter Oil Bath
  • 235/R16 LRE Radial Tires, Mod Wheel
  • Spare Tire Mount
  • Brakes on Both Axles
  • Five Leaf Heavy Duty Slipper Springs
  • Twin 12,000 LB Bolt-On Two-Speed Side Wind Jacks
  • 6" Slide In Loading Ramps
  • 25K, 2 5/16" Adjustable Gooseneck
  • 12" Structural I-Beam Chassis
  • 12" Structural I-Beam Gooseneck
  • 3" Structural Channel Crossmembers, 16” On Center
  • 44", 12GA Tarp Ready Bulkhead
  • 3/16" (7GA) Smooth Plate Steel Floor
  • Tarp Mounting Brackets with Protective Bulkhead
  • Stake Pockets Included on Sides and Front
  • Barn Door Gate
  • Scissor Hoist
  • Industrial Grade Sealed Wiring Harness, LED Lights
  • Sand Blasted, Degreased, Acid Washed, Sealer Rinsed
  • Sherwin Williams Powder Coat for a High Gloss & Protective Finish
Configure Your Trailer

Options

Jack Options
Twin 12,000 LB Bolt-On Two-Speed Side Wind Jacks
Twin 12,000 LB Stillwell Hydraulic Jacks
Other Options
Roll Tarp Kit
Solar Battery Charger
110V Battery Charger
Radial Spare Tire and Wheel Mounted on Trailer
4 Tie Down D-Rings
Group 24 Deep Cycle Battery
