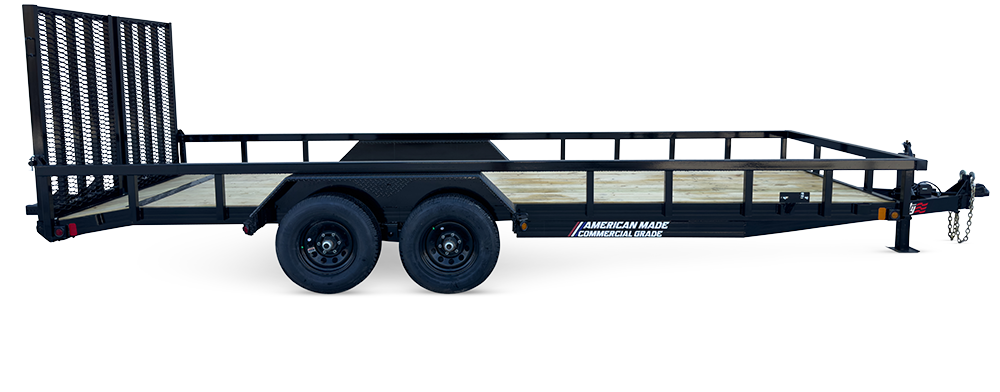

MODELS: | LU10K83C5
Features
- 9,990 lbs. GVWR
- 83” Bed Width
- 16', 18', 20', 22', 24' Lengths
- (2) 5,200 LB Straight, Dexter E-Z Lube
- 225/R15 LRE Radial Tires, Mod Wheel
- Spare Tire Mount
- Brakes on Both Axles
- Four Leaf Eye-To-Eye Springs
- 7,000 LB Jack
- Spare Tire mount
- 14K, 2 5/16" Adjustable Coupler
- 9.5" X 72" 14GA Diamond Plate Fenders
- 5” Channel Chassis
- 5” Structural Channel Wrapped Tongue
- 3" Structural Channel Crossmembers, 24” On Center
- 3" X 3" Tube Top Rail & 2" X 2" Tube Uprights
- Treated Pine Decking
- Industrial Grade Sealed Wiring Harness, LED Lights
- Sand Blasted, Degreased, Acid Washed, Sealer Rinsed
- Sherwin Williams Powder Coat for a High Gloss & Protective Finish
Configure Your Trailer
Options
| Tire Options |
|---|
| 225/R15 LRC RADIAL, Silver Mod Wheels |
| 225/R15 LRC RADIAL, Black Mod Wheels |
| Coupler Options |
| 14K, 2 5/16" Adjustable Coupler |
| 20K, Pintle Eye Adjustable Coupler |
| Jack Options |
| 7,000 LB Top Wind Dropleg Set Back Jack |
| 12,000 LB Top Wind Dropleg Jack |
| Tail Options |
|---|
| 30" Tube Gate, 6GA Expanded (One Spring Standard) |
| 48" Tube Gate, 6GA Expanded (Two Springs Standard) |
| 2' Wood Dovetail |
| Side Mount ATV Ramps [14' Length Only] |
| 60" X 48" Tube Side Gate, 6GA Expanded [12' & 14' Lengths] |
| 82" Full Width Split Ramps with Spring Assist, 4# Grating |
| Side Options |
| 23" V-Crimped Solid Metal Sides |
| Other Options |
| (4) Tie Down D-Rings |
| Rectangular Storage Box |
| Radial Spare Tire and Wheel Mounted on Trailer |
