LD14K83B8

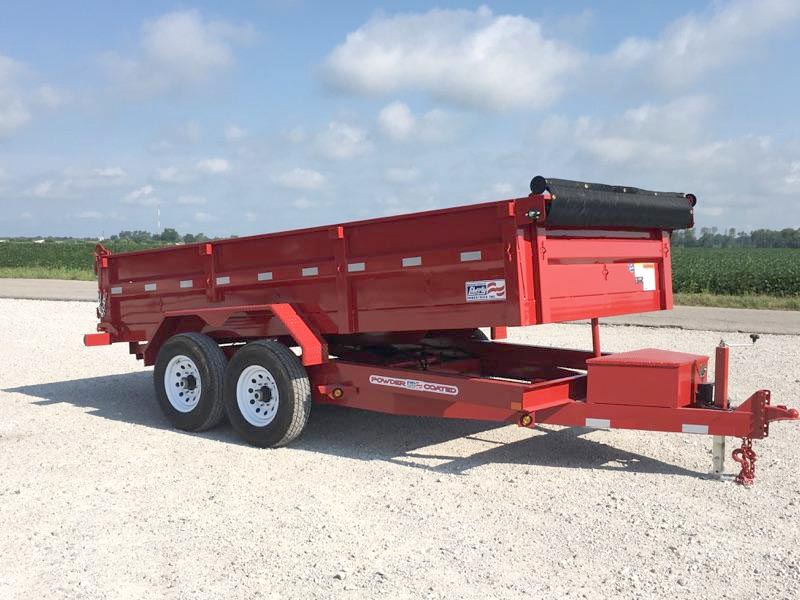

14K HEAVY DUTY DUMP 83" WIDE DECK, 8" I-BEAM

Models
LD14K83X12B8 83″ X 12′, 8″ I Beam, Low Profile Scissor
LD14K83X14B8 83″ X 14′, 8″ I Beam, Low Profile Scissor
LD14K83X16B8 83″ X 16′, 8″ I Beam,  Low Profile Scissor
LD14K83X12B8-42HS 83″ X 12′, 8″ I Beam, Low Profile Scissor, 42″ High Side
LD14K83X14B8-42HS 83″ X 14′, 8″ I Beam, Low Profile Scissor, 42″ High Side
LD14K83X16B8-42HS 83″ X 16′, 8″ I Beam,  Low Profile Scissor, 42″ High Side



Specifications
GVWR 14,000 Lbs.
BED WIDTH 83″
LENGTHS 12′, 14′, 16′
AXLE(S) 7,000 4″ Drop, Dexter E-Z Lube
TIRES & WHEELS 235/R16 LRE Radial Tires, Mod Wheel
ELEC BRAKES Brakes on Both Axles
SUSPENSION Five Leaf Heavy Duty Slipper Springs
FENDERS 9.5” Jeep Style Teardrop Fenders
CHASSIS 8″ I-Beam
TONGUE 8″ I-Beam
CROSS MEMBERS 3″ Structural Channel, 16″ On Center
SIDE PANELS 24″, 12 Gauge
FLOOR 3/16″ Smooth Plate
TARP MOUNTS Protective Bulkhead With Tarp Mounting Brackets
STAKE POCKETS Stake Pockets Included On Sides And Front
TAILGATE Combination Gate (Barn Door & Spread)
HYDRAULICS Scissor Hoist With 5″ Cylinder
ELECTRICAL Industrial Grade Sealed Wiring Harness, LED Lights
LIGHTING LED sealed beam lights
FINISH PREP Sand Blasted, Degreased, Acid Washed, Sealer Rinsed
FINISH Powder Coated
Options
Tire Options
235/80R16 LRE RADIAL, White Mod Wheels
235/80R16 LRE RADIAL, Silver Mod Wheels
235/80R16 LRE RADIAL, Black Mod Wheels
235/80R16 LRE RADIAL, Aluminum Mod Wheels
Coupler Options
14K, 2-5/16″ ADJUSTABLE COUPLER (Requires Set Back Jack Option)
20K, PINTLE EYE ADJUSTABLE (Requires Set Back Jack Option)
25K, GOOSENECK W/ 2-5/16″ ADJUSTABLE COUPLER
Jack Options
7,000 LB DROPLEG SET BACK JACK
12,000 LB DROPLEG SET BACK JACK
TWIN 12,000 LB JACKS  (Gooseneck Only)
TWIN 12,000 LB TWO SPEED JACKS (Gooseneck Only)
Fender Options
ALUMINUM ROCK GUARDS ON FENDERS
DIAMOND PLATE JEEP STYLE FENDERS
SMOOTH JEEP SYTLE TEARDROP FENDERS
Tail Options
6″ SLIDE IN LOADING RAMPS
Other Options
TIE DOWN D-RING ASSEMBLY
GROUP 24 DEEP CYCLE BATTERY
110V BATTERY CHARGER
ROLL TARP
18″ EXPANDED METAL SIDES PER FT.
SOLAR BATTERY CHARGER
SPARE TIRE MOUNT ONLY
RADIAL SPARE TIRE AND WHEEL MOUNTED ON TRAILER

Parts? Questions? Call Us At 765-246-4031

Disclaimer

Product information is as accurate as possible at the date of publication. All features and specifications are subject to change without notice. Availability subject to dealer stock and factory. Owners are responsible for the proper selection and use of tow vehicles. Consult your vehicle's manual for towing capacity details. Failure to do so may lead to damage to your vehicle, trailer, or others.
